1000 RANGE DOORS

1000 RANGE

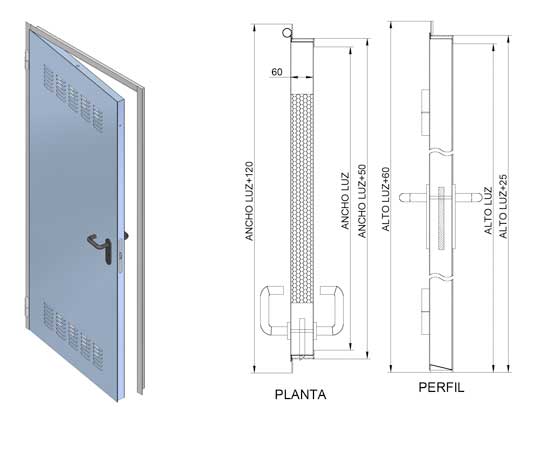

PAP-1160R



Metal door comprised of:



LEAF: 60 mm thick, made of 1-1.2 mm steel sheet metal, rigid insulation on the inside and finished with water-based two-component primer paint, without solvents, with high protection degree. Finish in RAL 7035.



FRAME: Z-type, manufactured in 2.5 mm thick steel sheet metal, with CIMESA CB5/22 steel flat hinges.



SYSTEM: Locking hardware comprised of steel CIMESA lock, key and cylinder function, with polyamide handles.













Download PAP-1160R (spanish)

1000 RANGE

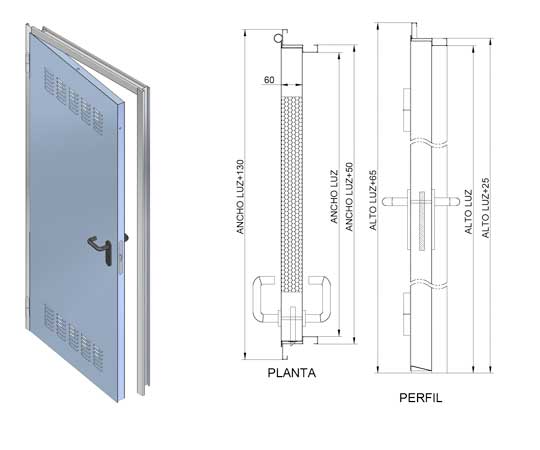

PAP-1260R



Metal door comprised of:



LEAF: 60 mm thick, made of 1-1.2 mm steel sheet metal, rigid insulation on the inside and finished with water-based two-component primer paint, without solvents, with high protection degree. Finish in RAL 7035.



FRAME: profiling manufactured in 1.5 mm thick steel sheet metal, with CIMESA CB5/22 steel flat hinges.



SYSTEM: Locking hardware comprised of steel CIMESA lock, key and cylinder function, with polyamide handles.













Download PAP-1260R (spanish)

1000 RANGE

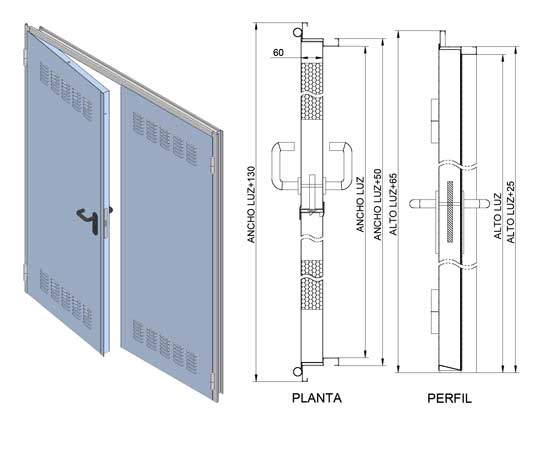

PAP-1262R



Metal door comprised of:



LEAVES: 60 mm thick, made of 1-1.2 mm steel sheet metal, rigid insulation on the inside and finished with water-based two-component primer paint, without solvents, with high protection degree. Finish in RAL 7035.



FRAME: profiling manufactured in 1.5 mm thick steel sheet metal, with CIMESA CB5/22 steel flat hinges.



SYSTEM: Locking hardware in primary leaf comprised of steel CIMESA lock, key and cylinder function, with polyamide handles. Latches embedded into edge in secondary leaf.











Download PAP-1262R (spanish)

1000 RANGE

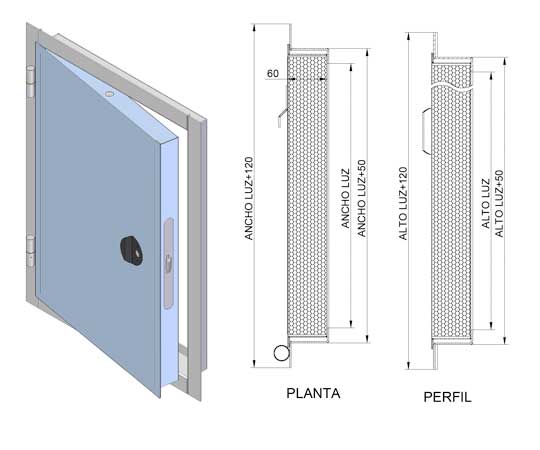

PAP-1460V



EI260 fire window comprised of:



LEAF: 60 mm thick, made of 1-1.2 mm steel sheet metal, rigid insulation on the inside and finished with water-based two-component primer paint, without solvents, with high protection degree. Finish in RAL 7035.



FRAME: Z-type window, manufactured in 2.5 mm thick steel sheet metal, with CIMESA CB2/18 steel flat hinges, with pull-out prevention system.



SYSTEM: Locking hardware comprised of steel CIMESA lock, key function, steel pull handle lacquered in black CIMESA 8001 CH N and bushing (water, gas or electric).









Download PAP-1460V (spanish)

1000 RANGE

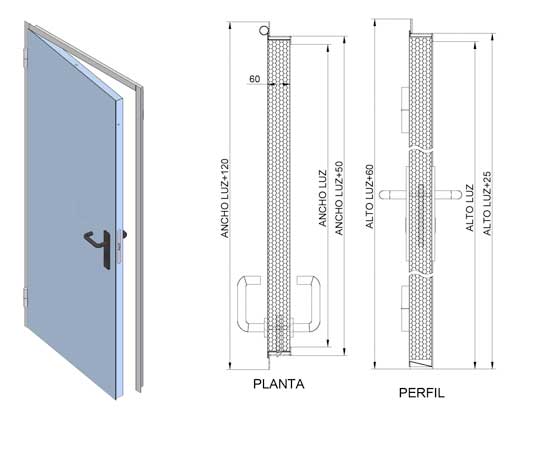

PAP-1460



EI260 fire door comprised of:



LEAF: 60 mm thick, made of 1-1.2 mm steel sheet metal, rigid insulation on the inside and finished with water-based two-component primer paint, without solvents, with high protection degree. Finish in RAL 7035.



FRAME: Z-type, manufactured in 2.5 mm thick steel sheet metal, with CIMESA CB5/22 steel flat hinges.



SYSTEM: Locking hardware comprised of steel CIMESA lock, key and cylinder function, with steel CIMESA 7111+7121 lacquered handles. Hydraulic spring door closers.











Download PAP-1460 (spanish)

1000 RANGE

PAP-1560



EI260 fire door comprised of:



LEAF: 60 mm thick, made of 1-1.2 mm steel sheet metal, rigid insulation on the inside and finished with water-based two-component primer paint, without solvents, with high protection degree. Finish in RAL 7035.



FRAME: profiling manufactured in 1.5 mm thick steel sheet metal, with CIMESA CB5/22 steel flat hinges.



SYSTEM: Hydraulic spring door closer and locking hardware, comprised of:



A) CIMESA steel lock, key and cylinder function, with steel CIMESA 7111+7121 lacquered handles.



B) Panic door bar 1910, operated on the outside with deadbolt handle.









Download PAP-1560 (spanish)

1000 RANGE

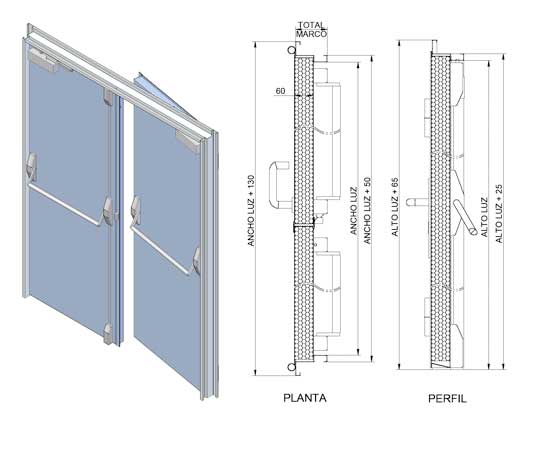

PAP-1562



EI260 fire door comprised of:



LEAVES: 60 mm thick, made of 1-1.2 mm steel sheet metal, rigid insulation on the inside and finished with water-based two-component primer paint, without solvents, with high protection degree. Finish in RAL 7035.



FRAME: profiling manufactured in 1.5 mm thick steel sheet metal, with CIMESA CB5/22 steel flat hinges.



SYSTEM: Hydraulic spring door closer and locking hardware, comprised of:



A) Primary leaf with CIMESA steel lock, key and cylinder function, with steel CIMESA 7111+7121 lacquered handles. Latches embedded into edge in secondary leaf.



B) Panic door bar 1910+1930, operated on the outside with deadbolt handle. In primary leaf, high and low lock in secondary leaf. Lock selector.













Download PAP-1562 (spanish)

1000 RANGE

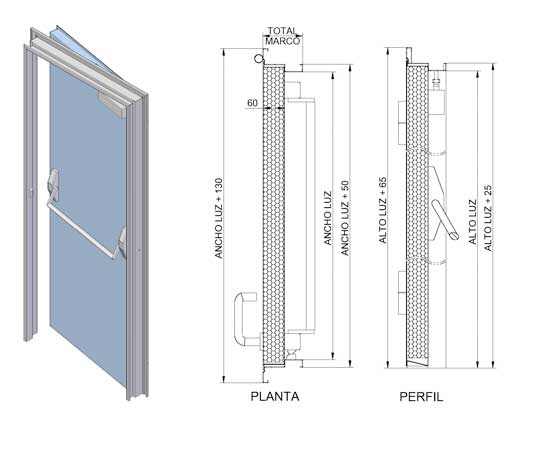

PAP-1660


EI260 fire door comprised of:



LEAF: 60 mm thick, made of 1-1.2 mm steel sheet metal, rigid insulation on the inside and finished with water-based two-component primer paint, without solvents, with high protection degree. Finish in RAL 7035.



FRAME: profiling manufactured in 1.5 mm thick steel sheet metal, with CIMESA CB5/22 steel flat hinges.



SYSTEM: Hydraulic spring door closer and locking hardware, comprised of:



A) CIMESA steel lock, key and cylinder function, with steel CIMESA 7111+7121 lacquered handles.



B) Panic door bar 1910, operated on the outside with deadbolt handle.









Download PAP-1660 (spanish)

1000 RANGE

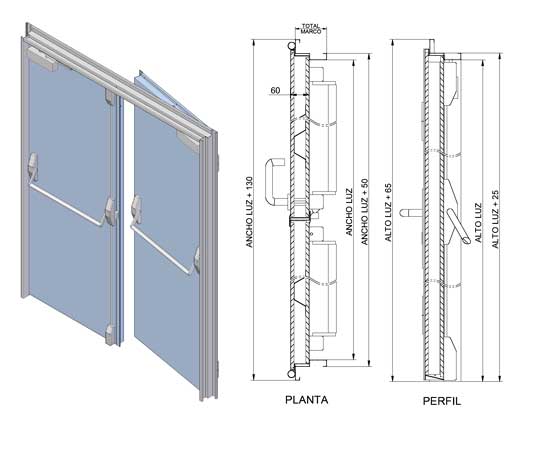

PAP-1662


EI260 fire door comprised of:



LEAVES: 60 mm thick, made of 1-1.2 mm steel sheet metal, rigid insulation on the inside and finished with water-based two-component primer paint, without solvents, with high protection degree. Finish in RAL 7035.



FRAME: profiling manufactured in 1.5 mm thick steel sheet metal, with CIMESA CB5/22 steel flat hinges.



SYSTEM: Hydraulic spring door closer and locking hardware, comprised of:



A) Primary leaf with CIMESA steel lock, key and cylinder function, with steel CIMESA 7111+7121 lacquered handles. Latches embedded into edge in secondary leaf.



B) Panic door bar 1910+1930, operated on the outside with deadbolt handle. In primary leaf, high and low lock in secondary leaf. Lock selector.













Download PAP-1662 (spanish)

1000 RANGE

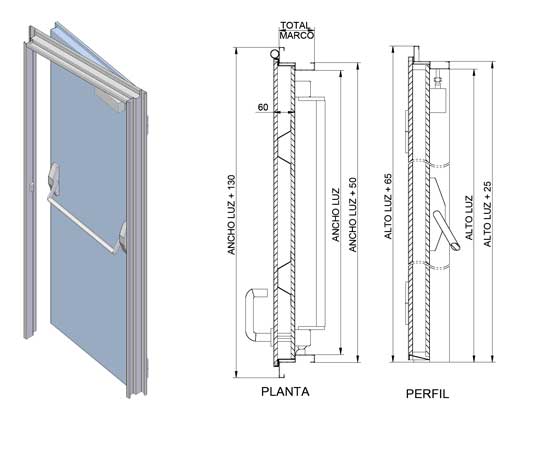

PAP-1760



EI260 fire door comprised of:



LEAF: 60 mm thick, made of 1-1.2 mm steel sheet metal, rigid insulation on the inside and finished with water-based two-component primer paint, without solvents, with high protection degree. Finish in RAL 7035.



FRAME: profiling manufactured in 1.5 mm thick steel sheet metal, with CIMESA CB5/22 steel flat hinges.



SYSTEM: Hydraulic spring door closer and locking hardware, comprised of:



A) CIMESA steel lock, key and cylinder function, with steel CIMESA 7111+7121 lacquered handles.



B) Panic door bar 1910, operated on the outside with deadbolt handle.









Download PAP-1760 (spanish)

1000 RANGE

PAP-1762



EI260 fire door comprised of:



LEAVES: 60 mm thick, made of 1-1.2 mm steel sheet metal, rigid insulation on the inside and finished with water-based two-component primer paint, without solvents, with high protection degree. Finish in RAL 7035.



FRAME: profiling manufactured in 1.5 mm thick steel sheet metal, with CIMESA CB5/22 steel flat hinges.



SYSTEM: Hydraulic spring door closer and locking hardware, comprised of:



A) Primary leaf with CIMESA steel lock, key and cylinder function, with steel CIMESA 7111+7121 lacquered handles. Latches embedded into edge in secondary leaf.



B) Panic door bar 1910+1930, operated on the outside with deadbolt handle. In primary leaf, high and low lock in secondary leaf. Lock selector.













Download PAP-1762 (spanish)

1000 RANGE

PAP-1770



EI260 fire door comprised of:



LEAF: 70 mm thick, made of 1-1.2 mm steel sheet metal, rigid insulation on the inside and finished with water-based two-component primer paint, without solvents, with high protection degree. Finish in RAL 7035.



FRAME: profiling manufactured in 1.5 mm thick steel sheet metal, with CIMESA CB5/22 steel flat hinges.



SYSTEM: Hydraulic spring door closer and locking hardware, comprised of:



A) CIMESA steel lock, key and cylinder function, with steel CIMESA 7111+7121 lacquered handles.



B) Panic door bar 1910, operated on the outside with deadbolt handle.









Download PAP-1770 (spanish)

1000 RANGE

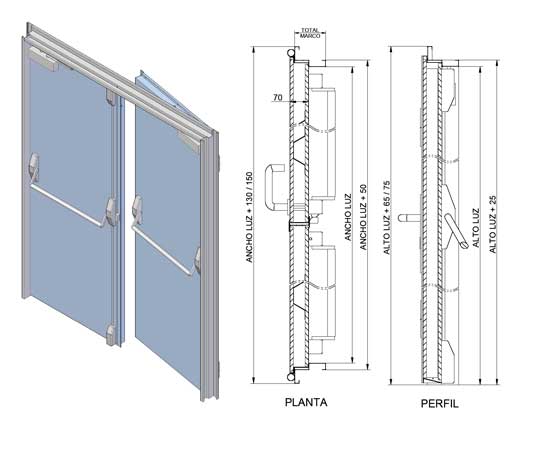

PAP-1772



EI260 fire door comprised of:



LEAVES: 70 mm thick, made of 1-1.2 mm steel sheet metal, rigid insulation on the inside and finished with water-based two-component primer paint, without solvents, with high protection degree. Finish in RAL 7035.



FRAME: profiling manufactured in 1.5 mm thick steel sheet metal, with CIMESA CB5/22 steel flat hinges.



SYSTEM: Hydraulic spring door closer and locking hardware, comprised of:



A) Primary leaf with CIMESA steel lock, key and cylinder function, with steel CIMESA 7111+7121 lacquered handles. Latches embedded into edge in secondary leaf.



B) Panic door bar 1910+1930, operated on the outside with deadbolt handle. In primary leaf, high and low lock in secondary leaf. Lock selector.













Download PAP-1772 (spanish)

1000 RANGE

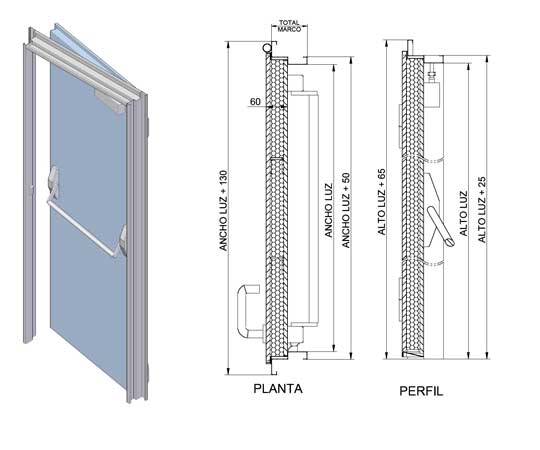

PAP-1860



EI290 fire door comprised of:



LEAF: 60 mm thick, made of 1-1.2 mm steel sheet metal, rigid insulation on the inside and finished with water-based two-component primer paint, without solvents, with high protection degree. Finish in RAL 7035.



FRAME: profiling manufactured in 1.5 mm thick steel sheet metal, with CIMESA CB5/22 steel flat hinges.



SYSTEM: Hydraulic spring door closer and locking hardware, comprised of:



A) CIMESA steel lock, key and cylinder function, with steel CIMESA 7111+7121 lacquered handles.



B) Panic door bar 1910, operated on the outside with deadbolt handle.









Download PAP-1860 (spanish)

1000 RANGE

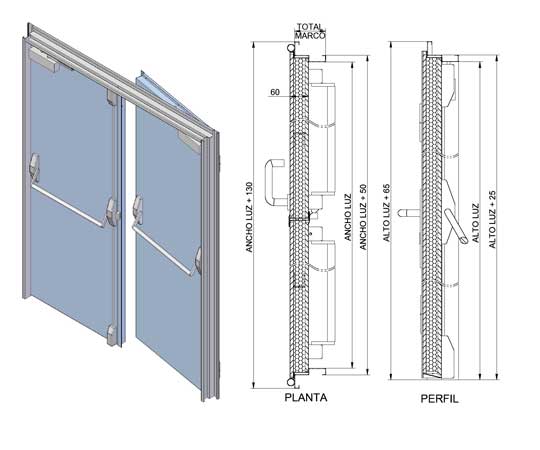

PAP-1862


EI290 fire door comprised of:



LEAVES: 60 mm thick, made of 1-1.2 mm steel sheet metal, rigid insulation on the inside and finished with water-based two-component primer paint, without solvents, with high protection degree. Finish in RAL 7035.



FRAME: profiling manufactured in 1.5 mm thick steel sheet metal, with CIMESA CB5/22 steel flat hinges.



SYSTEM: Hydraulic spring door closer and locking hardware, comprised of:



A) Primary leaf with CIMESA steel lock, key and cylinder function, with steel CIMESA 7111+7121 lacquered handles. Latches embedded into edge in secondary leaf.



B) Panic door bar 1910+1930, operated on the outside with deadbolt handle. In primary leaf, high and low lock in secondary leaf. Lock selector.













Download PAP-1862 (spanish)

1000 RANGE

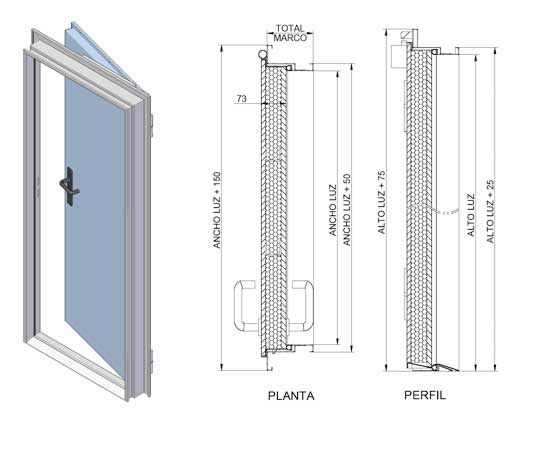

PAP-1970-AC


EI260 acoustic fire door, 38 dB, comprised of:



LEAF: 73 mm thick, made of 1-1.2 mm steel sheet metal, rigid insulation on the inside and absorbent material, finished with water-based two-component primer paint, without solvents, with high protection degree. Finish in RAL 7035.



FRAME: Profiling/enclosure manufactured in 1.5 mm thick steel sheet metal, with rubber perimeter gaskets to mitigate noise and intumescent gasket, provided with CIMESA CB6/24 steel ball bearing hinges.



SYSTEM: Hydraulic spring door closer and locking hardware, comprised of:



A) CIMESA steel lock, key and cylinder function, with steel CIMESA 7111+7121 lacquered handles.



B) Panic door bar 1910, operated on the outside with deadbolt handle.















Download PAP-1970-AC (spanish)

1000 RANGE

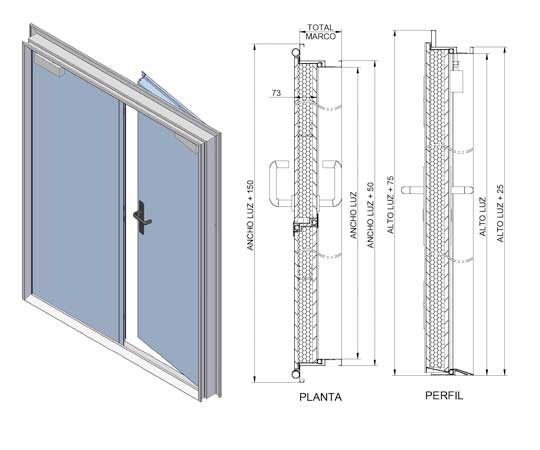

PAP-1972-AC



EI260 acoustic fire door, 38 dB, comprised of:



LEAVES: 73 mm thick, made of 1-1.2 mm steel sheet metal, rigid insulation on the inside and absorbent material, finished with water-based two-component primer paint, without solvents, with high protection degree. Finish in RAL 7035.



FRAME: Profiling/enclosure manufactured in 1.5 mm thick steel sheet metal, with rubber perimeter gaskets to mitigate noise and intumescent gasket, provided with CIMESA CB6/24 steel ball bearing hinges.



SYSTEM: Hydraulic spring door closer and locking hardware, comprised of:



A) Primary leaf with CIMESA steel lock, key and cylinder function, with steel CIMESA 7111+7121 lacquered handles. Latches embedded into edge in secondary leaf.



B) Panic door bar 1910+1930, operated on the outside with deadbolt handle. In primary leaf, high and low lock in secondary leaf. Lock selector.









Download PAP-1972-AC (spanish)



2000 RANGE AND 3000 RANGE DOORS

THE DOCUMENTATION FOR THE 2000 AND 3000 RANGES WILL BE AVAILABLE SHORTLY

WE APOLOGISE FOR THE INCONVENIENCE



COMPLETE RANGES







1000 RANGE





PAP-1160



PAP-1160R



PAP-1460V



PAP-1462V



PAP-1460



PAP-1560



PAP-1562



PAP-1660



PAP-1662



PIP-1660



PIP-1662



PAP-1760



PAP-1762



PAP-1860



PAP-1862



PAP-1970-AC



PAP-1972-AC









2000 RANGE





PAP-2050/52



PAP-2060/62



PAP-2160/62



PAP-2170



PAP-2172



PAP-2260F



PAP-2262F



PAP-2260F



PAP-2262



PAP-2270F



PAP-2272F



PAP-2370-AC



PAP-2372-AC



PAP-2370-AC



PAP-2372-AC



PIC-2460



PIC-2462



PIC-2470



PIC-2472



PIA-2560



PIA-2562



PIA-2560V



PIA-2562V



PIA-2660



PIA-2662



PIA-2770



PIA-2772



PAV-2860



PAV-2862



PAV-2870



PAV-2872



PIV-2860



PIV-2862



PIV-2870



PIV-2872



PIF-2940



PAF-2940



PFI-2950



PFI-2952



PIM-2950



PIM-2952



PIM-2960



PIM-2962



PIAM-2960



PIAM-2962



PIAM-2970



PIAM-2972









3000 RANGE





PAH-3070/80/90



PAH-3072/80/90



PIH-3070



PIH-3072



PAH-3170



PIH-3170



PAV-3270/80/90



PIV-3370/80/90



PAW-3470/80/90



PIW-3570/80/90







Full range, door dimensions, on request





Multi-purpose pivot steel door



Multi-purpose grille pivot steel door



Pivot steel manhole EI260



Pivot steel manhole EI260



Pivot steel door EI260



Pivot steel door EI260



Pivot steel door EI260



Pivot steel door EI260



Pivot steel door EI260



Pivot stainless steel door EI260



Pivot stainless steel door EI260



Pivot steel door EI260



Pivot steel door EI260



Pivot steel door EI290



Pivot steel door EI290



Acoustic pivot steel door EI260



Acoustic pivot steel door EI260









Full range, door dimensions, on request





Multi-purpose pivot steel door



Multi-purpose pivot steel door



Pivot steel manhole EI260



Pivot steel manhole EI260/90



Pivot steel manhole EI260/90



Pivot steel door EI260, side A and B cladding



Pivot steel door EI260, side A and B cladding



Pivot steel door EI260, side A or B cladding



Pivot steel door EI260, side A or B cladding



Pivot steel door EI290, side A and B cladding



Pivot steel door EI290, side A and B cladding



Acoustic pivot steel door EI290 for Theatre Exit



Acoustic pivot steel door EI290 for Theatre Exit



Acoustic pivot steel door EI290 for Theatre Entrance



Acoustic pivot steel door EI290 for Theatre Entrance



Pivot stainless steel door EI260



Pivot stainless steel door EI260



Pivot stainless steel door EI290/120



Pivot stainless steel door EI290/120



Pivot stainless steel door EI260



Pivot stainless steel door EI260



Glass pivot stainless steel door EI260



Glass pivot stainless steel door EI260



Pivot stainless steel door EI260



Pivot stainless steel door EI260



Pivot stainless steel door EI290



Pivot stainless steel door EI290



Glass pivot steel door EI260



Glass pivot steel door EI260



Glass pivot steel door EI290



Glass pivot steel door EI290



Glass pivot steel door EI260



Glass pivot steel door EI260



Glass pivot steel door EI290



Glass pivot steel door EI290



Formica stainless steel door



Formica steel door



Formica stainless steel door



Formica stainless steel door



Wooden stainless steel door



Wooden stainless steel door



Wooden stainless steel door



Wooden stainless steel door



Pivot stainless steel door EI260, wood



Pivot stainless steel door EI260, wood



Pivot stainless steel door EI290, wood



Pivot stainless steel door EI290, wood









Full range, door dimensions, on request





Horizontal drive steel door EI260/90/120



Horizontal drive steel door EI260/90/120



Horizontal drive stainless steel door EI260



Horizontal drive stainless steel door EI260



Horizontal drive steel door EI260 with peephole



Horizontal drive stainless steel door EI260 with peephole



Vertical drive steel door EI260/90/120



Vertical drive stainless steel door EI260/90/120



Vertical drive steel door EI260/90/120, folding



Vertical drive stainless steel door EI260/90/120, folding



AVAILABLE MANHOLES AND DOORS WITH IMMEDIATE DELIVERY

Door model





Door PAP-1160 Grille



Door PAP-1160 Grille



Manhole PAP-1460V



Manhole PAP-1460V



Manhole PAP-1460V



Manhole PAP-1460V



Door PAP-1460 Lock



Door PAP-1460 Lock



Door PAP-1560 Lock



Door PAP-1560 Lock



Door PAP-1560 Lock



Panic Door PAP-1560



Panic Door PAP-1560 + Peephole



Panic Door PAP-1560



Door PAP-1562 Lock



Panic Door PAP-1562



Panic Door PAP-1562



Panic Door PAP-1562 + Peephole



Door PAP-1562 Lock



Panic Door PAP-1562



Door PAP-1562 Lock



Door PAP-1660 Lock



Door PAP-1660 Lock



Door PAP-1662 Lock



Door PAP-1662 Lock



Door PAP-1860 Lock



Door PAP-1860 Lock



Door PAP-1862 Lock



Panic Door PAP-1862





EI2 (RF)













60



60



60



60



60



60



60



60



60



60



60



60



60



60



60



60



60



60



60



60



60



60



60



90



90



90



90





No. leaves





1



1



1



1



1



1



1



1



1



1



1



1



1



1



2



2



2



2



2



2



2



1



1



2



2



1



1



2



2





Passage width dimensions





700x2030



800x2030



400x600



450x700



500x350



650x350



700x2030



800x2030



700x2030



800x2030



900x2030



800x2030



800x2030



900x2030



1400x2030



1400x2030



1600x2030



1600x2030



1600x2030



1800x2030



1800x2030



800x2030



900x2030



1400x2030



1600x2030



800x2100



900x2100



1600x2100



1600x2100







TESTS AND CERTIFICATES

ONE-LEAF DOORS



EI260

EI290

EI2120

EI290 grade 3 tensile strength

EI260 acoustic 38 dB

EI290 acoustic 38 dB

EI2120 acoustic 38 dB

EI260 acoustic 45 dB

EI290 acoustic 45 dB

EI2120 acoustic 45 dB

EI260 with glass peephole

EI290 with glass peephole

EI2120 with glass peephole

EI260 with peepholes and jamb

Pressurisation test



TWO-LEAF DOORS



EI260

EI290

EI2120

EI260 acoustic 38 dB

EI290 acoustic 38 dB

EI2120 acoustic 38 dB

EI260 acoustic 45 dB

EI290 acoustic 45 dB

EI2120 acoustic 45 dB

EI260 with glass peephole

EI290 with glass peephole

EI2120 with glass peephole

EI260 with peepholes and jamb

Pressurisation test

DIVISION DOORS



Sliding EI260

Sliding EI290

Sliding EI2120

Sliding EI2180

Guillotine EI260

Guillotine EI290

Guillotine EI2120

Guillotine EI2180



Pedestrian door for sliding or guillotine, with and without lower soleplate piece.







AUTOMATIC DOOR "CE" MARKING



Sliding, swing, guillotine and hinged.



Certificates fire doors



Tests fire doors

TECHNICAL DOCUMENTATION FOR FIRE DOORS   -   CAMBRONERO INDUSTRIAS METÁLICAS, S.A.   -   CIMESA

Aviso legal * Política de privacidad * Cookies
