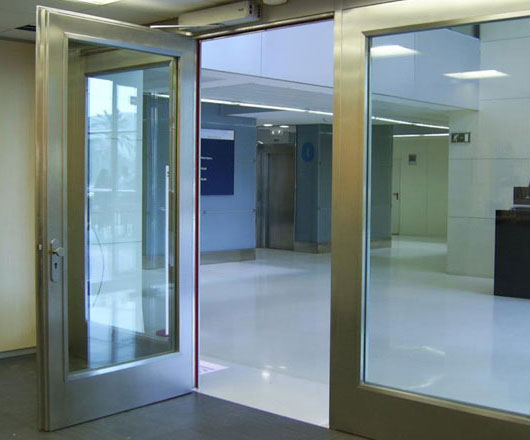

GLASS FIRE DOORS



Fire doors with different glazed surfaces. Circular (port hole), square or rectangular peepholes.



Test certificates:



One-leaf doors:

- EI260 with glass peephole

- EI290 with glass peephole

- EI2120 with glass peephole

- EI260 with peepholes and jamb



Two-leaf doors:

- EI260 with glass peephole

- EI290 with glass peephole

- EI2120 with glass peephole

- EI260 with peepholes and jamb

Glass fire doors

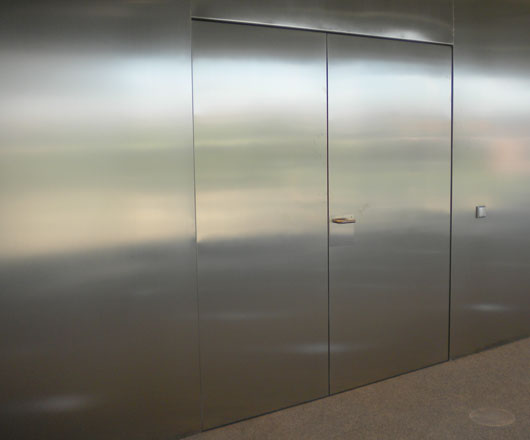

STAINLESS STEEL FIRE DOORS



The CIMESA 2000 Range incorporates fire doors that can be made of stainless steel. Their leaves and frames are flush-fitting, achieving a high-quality finish.



Extensive catalogue of stainless steel hardware and accessories, according to needs.

Stainless steel fire doors

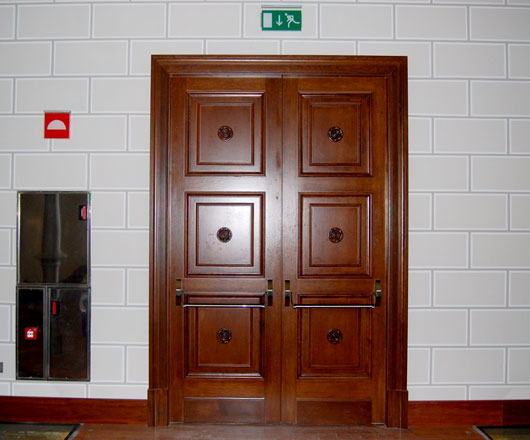

FIRE DOORS WITH WOOD PANELLING



On request, CIMESA can make fire doors with a specially prepared structure to apply wooden panelling, in harmony with the existing carpentry on site.

Fire doors with wood panelling

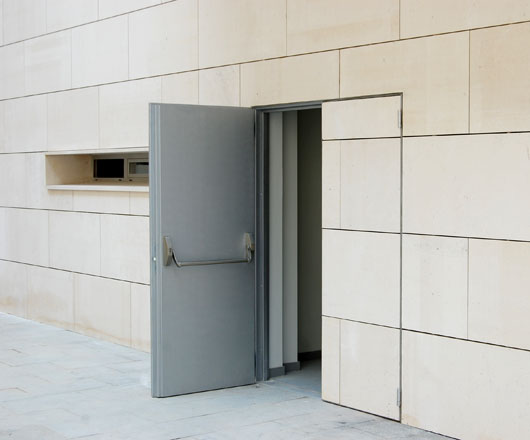

FIRE DOORS WITH SPECIAL FINISHES



Apart from wooden panelling, on request, CIMESA can manufacture doors with different types of panelling and finishes, such as, for example, stone cladding.



These are ideal to be installed in theme park attractions, where they integrate perfectly and merge in with the environment where they are located.













Fire doors with special finishes

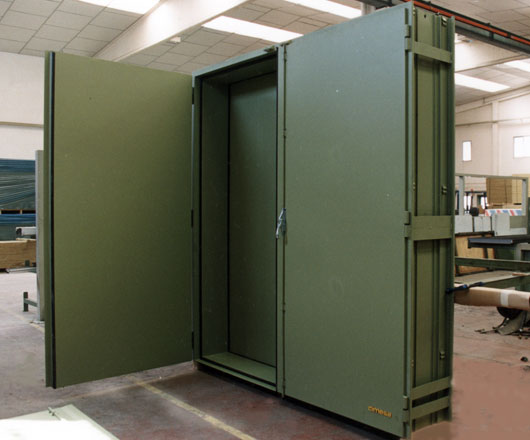

ACOUSTIC FIRE DOORS



Apart from the fire-proof function, doors installed in cinemas, music conservatories, auditoriums, recording studios, etc. must provide adequate sound-proofing.



Our acoustic doors have been tested in official laboratories and have been qualified as:



- EI260 acoustic 38 dB

- EI290 acoustic 38 dB

- EI2120 acoustic 38 dB

- EI260 acoustic 45 dB

- EI290 acoustic 45 dB

- EI2120 acoustic 45 dB

Acoustic fire doors

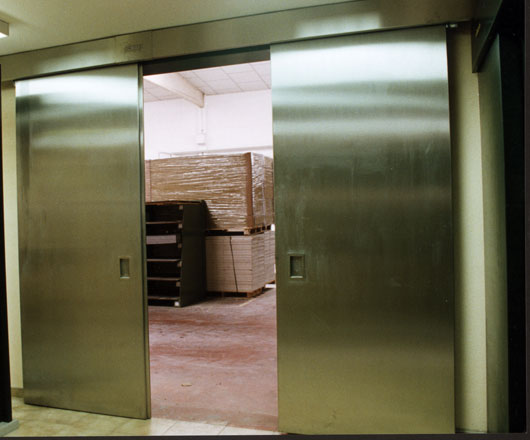

SLIDING FIRE DOORS



Sliding division doors, with one, two or more leaves (telescopic).



Different manual and automatic opening, closing and restraint systems, connected to smoke or heat detection units.



Pedestrian door incorporated into leaf, with and without lower soleplate piece.



- sliding EI260

- sliding EI290

- sliding EI2120

- sliding EI2180



Possibility of opening and closing in vertical direction (guillotine type).



Sliding fire doors

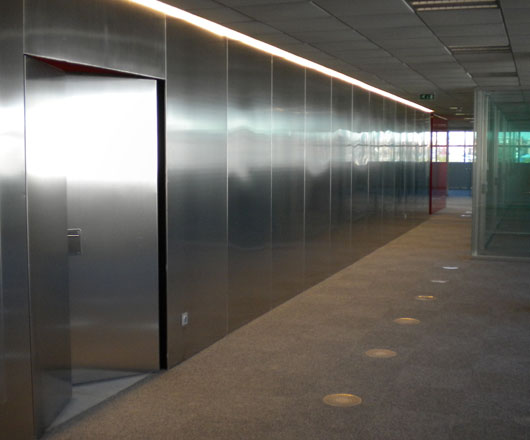

FIRE PARTITIONS



Fire partitions comprised of one or two-leaf doors, jambs and fixed partitioning, with different finishes and dimensions.



Multiple combinations of elements, according to the specific needs of each work project.



Fire partitions

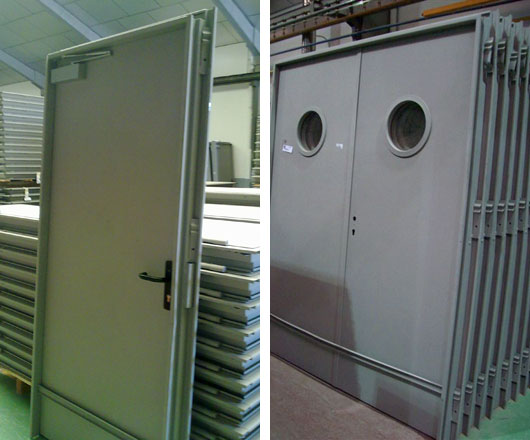

STANDARD FIRE DOORS



CIMESA has a wide range of one and two-leaf doors in permanent stock, for immediate delivery.



EI260 / EI290 / EI2120 in standard dimensions of 700 / 800 / 900 / 1000 / 1400 / 1600 / 1800 mm wide and, y 2030 / 2100 mm high.



Different possibilities and combinations of hardware and accessories, spring door closers, panic locks or EI (RF) glass peepholes.

Standard fire doors

FIRE DOORS EI260-90-120-180   -   CAMBRONERO INDUSTRIAS METÁLICAS, S.A.   -   CIMESA
